Ral9003 Super-HDP PPGI Pre-Painted Color Coated Steel Coil Beckers For Corrugated Sheets

  • 1
  • 2
  • 3

Brand Name : Decho Building Materials

Model Number : S550GD PRE-PAINTED GAVANIZED STEEL

Certification : MILL TEST CERTIFICATE

Place of Origin : China

MOQ : 25 TONS

Price : USD 600~1050

Payment Terms : L/C, T/T

Supply Ability : 500 tons per day

Delivery Time : 30~45days

Packaging Details : Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet

thickness : 0.50~1.2mm

width : 600~1250mm

PAINT SYSTEM : Super-HDP

Paint Brand : Beckers

Quality Warranty : 40 Years

Back Coated Thickness : 5um-20um

Contact Now

Ral9003 Super-HDP PPGI Pre-Painted Color Coated Steel Coil 40 Years Waranty Beckers For Corrugated Sheets



Product details:
Color-coated panels are metal-chemical composites that are ideal substitutes for wood and other materials. They offer the following advantages: environmental protection, low carbon content, flame retardancy, weather and scale resistance, excellent processability and richness of color, reducing building maintenance costs.

Environmentally friendly, recyclable: eco-friendly manufacturing, the product does not pollute, contains no formaldehyde, produces no construction waste and is recyclable.




Application areas:

In the construction sector: manufacture of exterior and interior products such as metal shingles, corrugated sheets, sandwich panels, profiles, metal ceilings, skirting boards, decorative panels inside heated and unheated premises, elevators, doors, window shutters, shelves, etc.

in the automotive industry: for the manufacture of exterior and interior body parts (car doors, car shoes, oil filters, dashboards, windscreen wipers, etc.).

in the manufacture of household appliances, furniture and consumer goods: metal furniture, lighting equipment, shelving, radiators, car doors, car shoes, etc.

PPGI is widely used in column and beam construction, civil engineering and decoration. Colored corrugated sheet is tough, useful and aesthetically pleasing. PPGI guarantees that buildings, automobiles and household appliances will retain their shine for years to come.



Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550



Paint Brand:

Valspar



Loading Port:

Qingdao/Tianjin Port



 Thickness
 GI 0.20mm~1.70mm                GL 0.20mm~3.0mm
 Width
 600mm~1500mm
 Zink-Coating
 Z40~Z275g/㎡                              AZ30~AZ200g/㎡

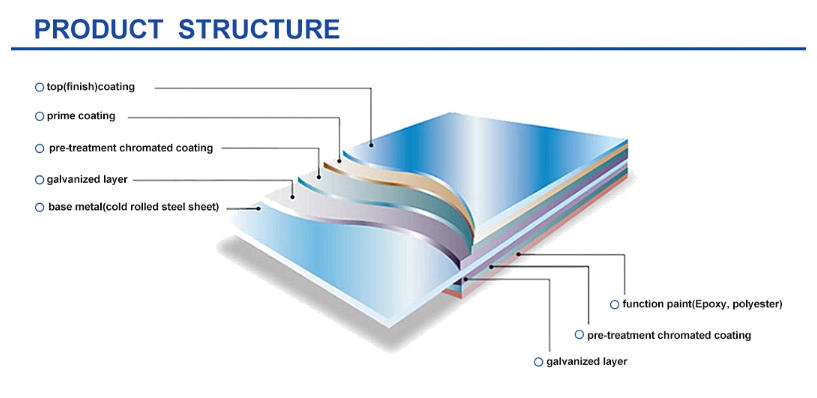

 Paint Structure
 2/1, 2/2, 3/2, 3/3
Paint Coating
 Top side 15μm~55μm               Back side 5μm~30μm



Structural Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
30,33,36,40 0.25 0.9 0.035 0.04     0.2 0.2 0.15 0.06 0.008 0.008 0.025
36T2,45-80 0.25 1.35 0.035 0.04     0.2 0.2 0.15 0.06 0.008 0.008 0.025
45T2 .02- 0.08 .30- 1.0 .03- .07 0.025 .02- .08 0.6 0.2 0.2 0.15 0.06 0.008 0.008 0.025 .01- .03



HSLA Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
45C1 0.22 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
45C2 0.15 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C1 0.23 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C2 & 55C2 0.15 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
55C1 0.25 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C1 & 65C1 0.26 1.5 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C2 & 65C2 0.15 1.5 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
70C1 0.26 1.65 0.04 0.04     0.2 0.2 0.15 0.16 0.005 0.005 0.005
70C2 0.15 1.65 0.04 0.04     0.2 0.2 0.15 0.16 0.005 0.005 0.005



Common Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
CSA 0.1 0.6 0.03 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSB 0.02-.15 0.6 0.03 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSC 0.08 0.6 0.1 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
BH 0.012 1.5 0.12 0.03     0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSA 0.1 0.5 0.02 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSB 0.02-.15 0.5 0.02 0.03     0.2 0.2 0.15 0.06 0.008 0.008 0.025
DDS 0.06 0.5 0.02 0.025 .01   0.2 0.2 0.15 0.06 0.008 0.008 0.025
EDDS 0.02 0.4 0.02 0.02 .01*   0.2 0.2 0.15 0.06 0.1 0.1 0.15



Ral9003 Super-HDP PPGI Pre-Painted Color Coated Steel Coil Beckers For Corrugated Sheets

Ral9003 Super-HDP PPGI Pre-Painted Color Coated Steel Coil Beckers For Corrugated SheetsRal9003 Super-HDP PPGI Pre-Painted Color Coated Steel Coil Beckers For Corrugated SheetsRal9003 Super-HDP PPGI Pre-Painted Color Coated Steel Coil Beckers For Corrugated Sheets

Ral9003 Super-HDP PPGI Pre-Painted Color Coated Steel Coil Beckers For Corrugated Sheets
