275G/M2 Textured Matt Colour Coated Steel Coils 0.125-0.8mm*600-1250mm

Name: 275GM2 Textured Matt Colour Coated Steel Coils 012508mm6001250mm
Price: 900 USD

Buy cheap 275G/M2 Textured Matt Colour Coated Steel Coils 0.125-0.8mm*600-1250mm product

MOQ : 25 MT

Price : 900 USD

Payment Terms : L/C, T/T

Supply Ability : 500MT/DAY

Delivery Time : 30-40 DAYS

Packaging Details : Horizontal Package With Wooden Pallet

Paint Type : Regular Polyester

Warranty : 20 years

Base Metal : Z120

Usage : Roof Panels / Wall Cladding

Steel Grade : EN10143 DX51D

Destination : Gdansk, Poland

Paint system : Nippon

Size : 0.55*1250mm

Contact Now

Paint Guarantee 10-15 Years 275G/M2 Textured Matt Prepainted Steel

**Colour Coated Steel Coils 0.125-0.8mm*600-1250mm**

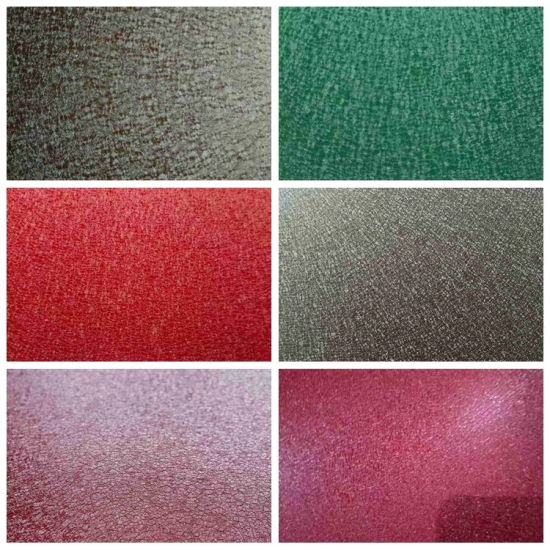

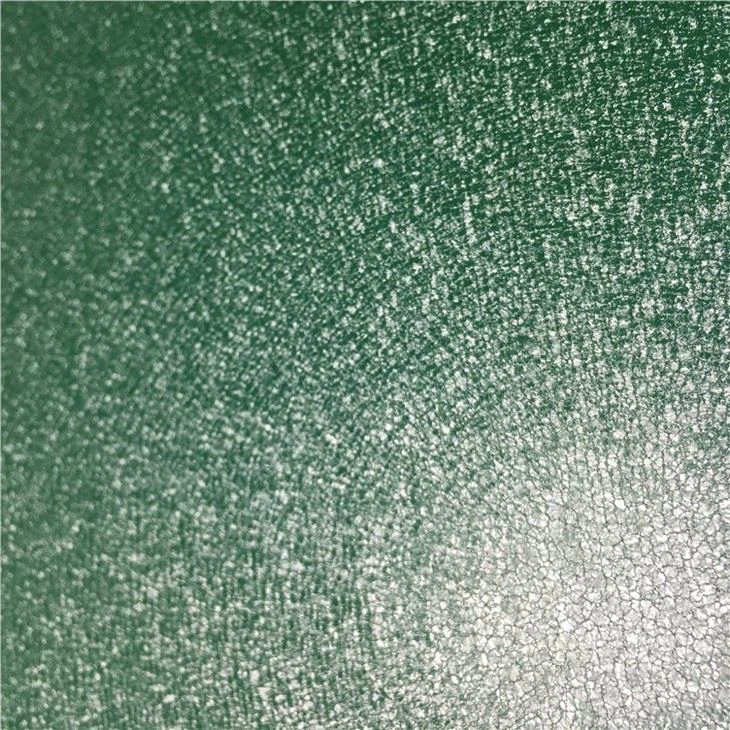

Reticulated colour coated sheet, also called grid colour coated sheet, is a colour coated sheet coated on galvanised, aluminium-zinc plated, cold rolled and other substrates with a kind of high weather-resistant polyester coating that has a reticulated effect on the surface of the coating after drying. It is mainly used in the indoor and outdoor decoration of civil buildings, villas, high-end integrated houses, industrial buildings and so on.

Product characteristics

The coating presents "diffuse reflection characteristics" to the sunlight, and when applied to industrial plants, due to the diffuse reflection characteristics of the surface of the coating, it makes the overall building colour softer and avoids light pollution.

Applied to villas, high-grade integrated house roofs and high-rise buildings, it can enhance the contrast with the surrounding environment and reduce the visual deviation of pilots who fly over the buildings.

The surface has a good "mesh" visual effect.

Because of the production of warm or dark coloured paints, it has a certain heat-absorbing effect and a psychological underlining effect when used in cold northern regions.

Scope of application

Because of its low light effect, close to nature and other characteristics, mesh colour coated board is widely used in high-rise buildings, villas, high-end integrated housing, industrial buildings and other indoor and outdoor decoration. Especially in civil buildings, villas and other roof colour steel antique tiles in the production of the most widely used.

Coating Structures

Type of coating structure

2/1: Coat upper surface twice, lower surface once, bake twice.
2/1M: Coat upper and lower surfaces twice, bake once.
2/2: Top and bottom surfaces are coated twice each and baked twice.

Usage of different coating structures:

2/1: The corrosion resistance and scratch resistance of single layer back coating is poor, but it has good adhesion, mainly used for sandwich panels.It is mainly used for sandwich panels;
2/1M: backcoat with good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer compression moulding panels.
2/1M: good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer pressboards and sandwich panels.
2/2: double-layer backing paint with good corrosion resistance, scratch resistance and processability, mostly used for single-layer pressboards, but with good adhesion.

Most of them are used for single-layer moulding board, but its adhesion is not good, and it is not suitable for sandwich board.

Product Description

Prime matt color coated steel coil/Prepainted Galvanized Steel Coil/PPGI & PPGL
1. Zinc: 40-275gsm
2. Thickness: 0.13-1.5mm
3. Width: 600-1250mm
4. Type of paint: PE; Hdp; Smp; PVDF

Superiority
1. Good adhesion, can be roll forming
2. The printech color coated steel coil building materials color not change even after being roasted under high temperture for 6-15 years
3. Process: Continuous coil coating line --- 3 coating and 3 bake

Product features:
(1) good durability, and can be used longer than galvanized steel;
(2) has good heat resistance, and compared with galvanized steel, under high temperature it does not discolor easily;
(3) has good heat reflecting
(4) have silvery white luxuriant surface;
(5) has machining capability and spraying performance similar to galvanized steel;
(6) good weldability.

Standard export seaworthy packing:
4 eye bands and 4 circumferential bands in steel, galvanized metal fluted rings on inner and outer edges, galvanized metal & waterproof paper wall protection disk, galvanized metal & waterproof paper around circumference.

Thickness (mm)	0.1-2 mm (±0.02 mm)
Width (mm)	600-1250 mm (±2 mm)
Aluzinc coating	AZ 20-150 g/sm
Front color coating	Prime : 5 μm + top coating : 7-25 μm
Back color coating	5 -15 μm
Hardness	CQ/ FH/ G 300-G 550 /HRB 60-90 (Soft---full hard)
Coil Weight(T)	3-5 tons or As your requirement.
Color	As RAL or as customer's sample.
Paint	PE,SMP.HDP,PVDF.
Standard	GB/T 12754-2019; ASTM A 755; EN 10169; JIS G 3312
Steel Grade	CGCC,TDC51D+Z
Certification	ISO 9001, BV, SGS
Quality control	commercial and structural quality. Anti-MEK Wiping more than 100 times
Surface Treatment	With plastic film , Chromated, , Matt, Decorate, Sand surface, Highlight.
Color Stone-carving Sheet	It looks like stone carving, full of sense of quality.
Static-resistance Sheet	With resistance on the surface ( 107-108Ω ), it contains good performance of static-resistance and is applied in the fields of electricity, sanitation and food.
Heat-resistance Sheet	It can reduce surface temperature by 15-20ºC. It's a kind of good construction material for roof making.
Chameleon Sheet	It takes on different colors from different angles and bring a band new sense to the construction-one material, two colors.
Flossy Sheet	Good touch quality makes you feel touch floss.
Texture Sheet	It features special texture and shines in the sun.
Matt /Wrinkle Sheet	It features solid effect and good quality of anti-scraping, mainly applied in market of volume curtain.

Pre-Painted Steel / Aluminum Coating Structure

275G/M2 Textured Matt Colour Coated Steel Coils 0.125-0.8mm*600-1250mm

DECHO building colour steel plate can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

Reasons for choosing Decho Building Materials new material:

Provide extremely rich colour choices
The paint surface is long-lasting and bright
Surface coating will not fall off after stamping and has good hardness with strong ductility and is not easy to scratch.
with excellent weather resistance, corrosion resistance, is to ensure the durability of the premise of the building
DECHO BUILDING MATERIALS for the manufacturer direct sales
The colour is customized by customers;
Thickness and width have a variety of options;
We provide whole rolls and cut boards for sale;

Welcome to enquire.
