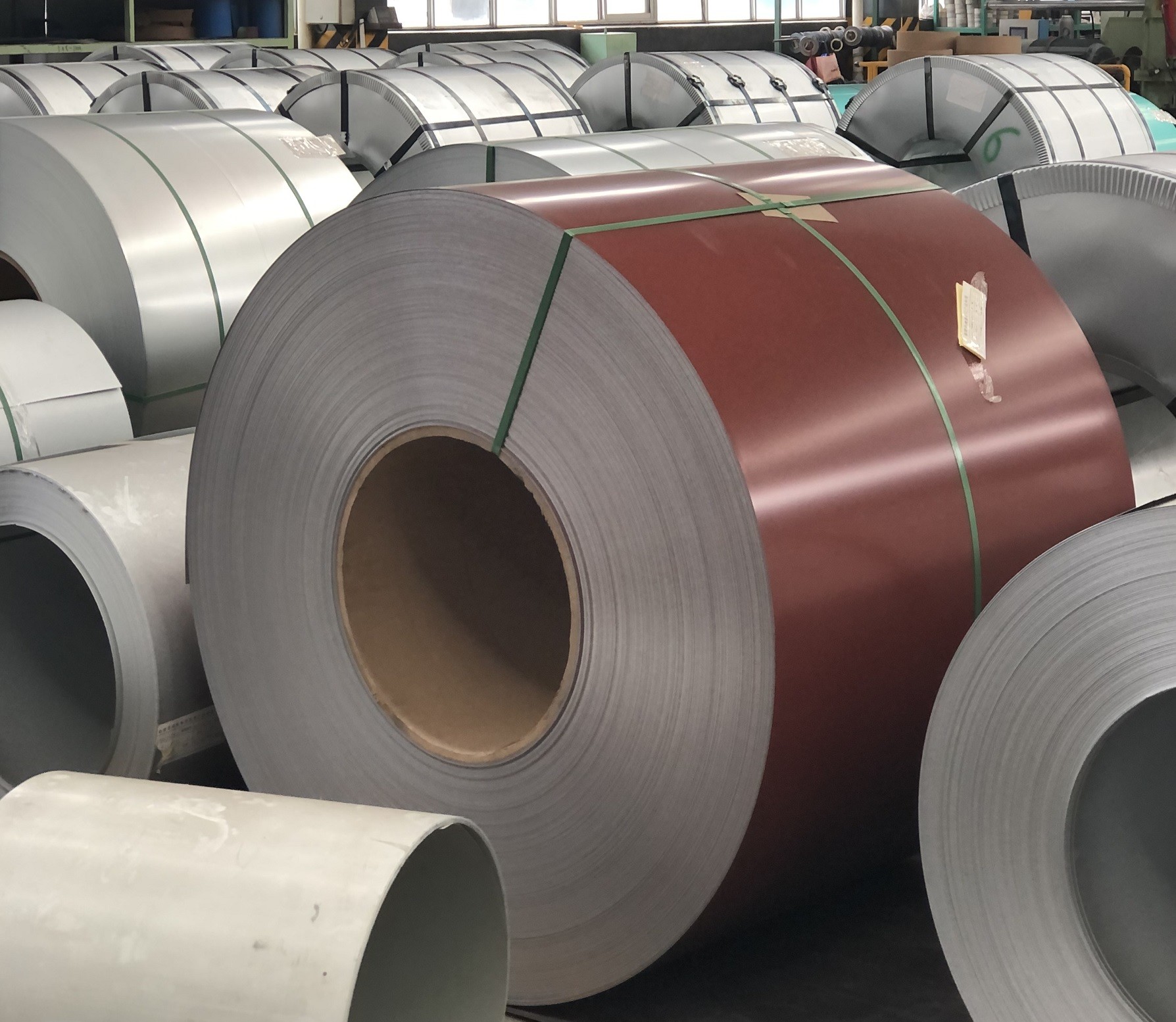

RAL8015 Beckers PPGI Coated Coil RMP SMP DX51D For Metal Wall Panels

Name: RAL8015 Beckers PPGI Coated Coil RMP SMP DX51D For Metal Wall Panels
Brand: Decho Building Materials
Price: 700 USD

Buy cheap RAL8015 Beckers PPGI Coated Coil RMP SMP DX51D For Metal Wall Panels product

Brand Name : Decho Building Materials

Model Number : S320GD PRE-PAINTED GAVANIZED STEEL

Certification : MILL TEST CERTIFICATE

Place of Origin : China

MOQ : 25 TONS

Price : USD 700~1050

Payment Terms : L/C, T/T

Supply Ability : 500 tons per day

Delivery Time : 30~45days

Packaging Details : Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet

Color : RAL8015/8017/8019

thickness : 0.5mm~1.2mm

Z-coating : Z185~275 g/㎡

steel grade : S320GD

STEEL GRADE : DX51D

PAINT SYSTEM : SMP RMP

Contact Now

Customized RAL8015 Beckers 0.50~1.2mm Z185 PPGI coil coated steel RMP SMP DX51D for Metal Wall Panels

Product details :

Color coated steel sheets are based on galvanized, aluminium zinc plated or cold rolled steel sheets with smooth and finely painted surfaces. By combining different paints and substrates, it is possible to meet specific color and performance requirements.

　　Coating structure:
　　A.Top coat
　　B.Primer
　　C.Chemical conversion layer
　　d.Galvanized, aluminized zinc substrate
　　E.Chemical conversion layer
　　F.Backcoat

Application :

Pre-painted steel coils are used in roof structure, surface sheet of balcony, frame of window, folding screen and electrical equipment. Pre-painted steel can be formed into almost any shape, and it has excellent resistance to weathering, superior longevity and texture options.

Architectural Projects
Retail and Commercial Spaces
Roofing, Industrial Buildings and Warehouses

Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550

Paint Brand:

Valpar, AkzoNobel, PPG, Beckers

Paint Coating Patterns:

Gloss Colors - RAL Code

Thickness	GI 0.20mm~1.70mm GL 0.20mm~3.0mm
Width	600mm~1500mm
Zink-Coating	Z40~Z275g/㎡ AZ30~AZ200g/㎡
Paint Structure	2/1, 2/2, 3/2, 3/3
Paint Coating	Top side 15μm~55μm Back side 5μm~30μm

Structural Grades	C	Mn	P	S	Al	Si	Cu	Ni	Cr	Mo	V	Cb	Ti	N
30,33,36,40	0.25	0.9	0.035	0.04			0.2	0.2	0.15	0.06	0.008	0.008	0.025
36T2,45-80	0.25	1.35	0.035	0.04			0.2	0.2	0.15	0.06	0.008	0.008	0.025
45T2	.02- 0.08	.30- 1.0	.03- .07	0.025	.02- .08	0.6	0.2	0.2	0.15	0.06	0.008	0.008	0.025	.01- .03

HSLA Grades	C	Mn	P	S	Cu	Ni	Cr	Mo	V	Cb	Ti
45C1	0.22	1.35	0.04	0.04	0.2	0.2	0.15	0.06	0.005	0.005	0.005
45C2	0.15	1.35	0.04	0.04	0.2	0.2	0.15	0.06	0.005	0.005	0.005
50C1	0.23	1.35	0.04	0.04	0.2	0.2	0.15	0.06	0.005	0.005	0.005
50C2 & 55C2	0.15	1.35	0.04	0.04	0.2	0.2	0.15	0.06	0.005	0.005	0.005
55C1	0.25	1.35	0.04	0.04	0.2	0.2	0.15	0.06	0.005	0.005	0.005
60C1 & 65C1	0.26	1.5	0.04	0.04	0.2	0.2	0.15	0.06	0.005	0.005	0.005
60C2 & 65C2	0.15	1.5	0.04	0.04	0.2	0.2	0.15	0.06	0.005	0.005	0.005
70C1	0.26	1.65	0.04	0.04	0.2	0.2	0.15	0.16	0.005	0.005	0.005
70C2	0.15	1.65	0.04	0.04	0.2	0.2	0.15	0.16	0.005	0.005	0.005

Common Grades	C	Mn	P	S	Al	Cu	Ni	Cr	Mo	V	Cb	Ti
CSA	0.1	0.6	0.03	0.035		0.2	0.2	0.15	0.06	0.008	0.008	0.025
CSB	0.02-.15	0.6	0.03	0.035		0.2	0.2	0.15	0.06	0.008	0.008	0.025
CSC	0.08	0.6	0.1	0.035		0.2	0.2	0.15	0.06	0.008	0.008	0.025
BH	0.012	1.5	0.12	0.03		0.2	0.2	0.15	0.06	0.008	0.008	0.025
FSA	0.1	0.5	0.02	0.035		0.2	0.2	0.15	0.06	0.008	0.008	0.025
FSB	0.02-.15	0.5	0.02	0.03		0.2	0.2	0.15	0.06	0.008	0.008	0.025
DDS	0.06	0.5	0.02	0.025	.01	0.2	0.2	0.15	0.06	0.008	0.008	0.025
EDDS	0.02	0.4	0.02	0.02	.01*	0.2	0.2	0.15	0.06	0.1	0.1	0.15
